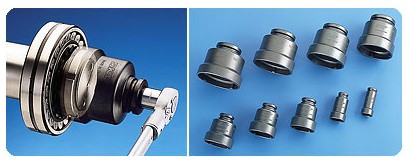

Axial lock nut sockets

nation

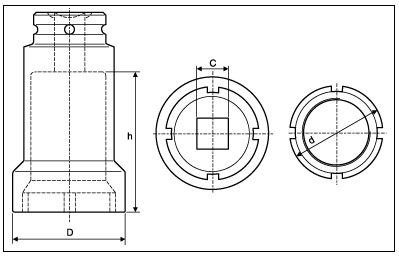

Dimensions

Connection

Weight

Suitable
for nuts
of series

d

D

h

C

mm

inch

mm

inch

mm

inch

inch

kg

lb

KM, KMK, KMF

 TMFS 0

18

0.7

22,0

0.9

45

1.8

3/8

0.10

0.22

0

 TMFS 1

22

0.9

28.0

1.1

45

1.8

3/8

0.10

0.22

1

 TMFS 2

25

1.0

33.0

61

2.4

1/2

0.43

0.44

2

 TMFS 3

28

1.1

36.0

1.4

61

2.4

1/2

0.24

0.53

3

 TMFS 4

32

1.3

38.0

1.5

58

2.3

1/2

0.28

0.62

4

 TMFS 5

38

1.5

46.0

1.8

58

2.3

1/2

0.38

0.84

5

TMFS 6

45

1.8

53.0

2.1

58

2.3

1/2

0.42

0.93

6

TMFS 7

52

2.0

60.0

2.4

58

2.3

1/2

0.45

1.00

7

TMFS 8

58

2.3

68.0

2.7

58

2.3

1/2

0.61

1.35

8

TMFS 9

65

2.6

73.5

2.9

63

2.5

3/4

0.80

1.76

9

TMFS 10

70

2.8

78.5

3.1

63

2.5

3/4

0.85

1.87

10

TMFS 11

75

3.0

83.5

3.3

63

2.5

3/4

0.90

1.98

11

TMFS 12

80

3.1

88.5

3.5

63

2.5

3/4

1.00

2.21

12

TMFS 13

85

3.3

94.0

3.7

63

2.5

3/4

1.10

2.43

13

 TMFS 14

92

3.6

103.0

4.1

80

3.2

1

2.20

4.85

14

TMFS 15

98

3.9

109,0

4.3

80

3.2

1

2,30

5.07

15

TMFS 16

105

4.1

116,0

4.6

80

3.2

1

2,45

5.39

16

TMFS 17

110

4.3

121,0

4.8

80

3.2

1

2,60

5.73

17

TMFS 18

120

4.7

131,0

5.2

80

3.2

1

2,90

6.39

18

TMFS 19

125

4.9

137,0

5.5

80

3.2

1

3,05

6.73

19

TMFS 20

130

5.1

143,0

5.7

80

3.2

1

3,30

7.28

20
