KT Series 20 - 40 Bar Middle Pressure PET Piston Air Compressor

Description

○ Valve materials are made of Sweden stainless steel band.
○ In order to ensure that air compressor highly reliable, using a redundant design principles, setting multiple protection measures: unloading, down drain, exhaust, ensure that the zero-pressure start.
○ Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs continuously between regular drainage, effectively preventing water too much liquid strike accidents.
○ High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.

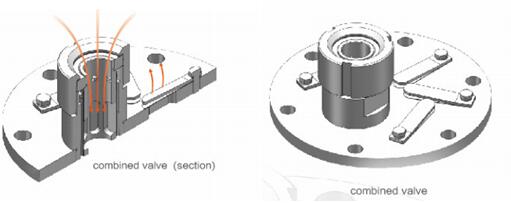

Combination valve patented technology

1. Kotech combined air valve is the special kind of high efficient energy-saving and long life new combination air valve.
2. Structure by into trachea-shaped valve and exhaust valve combinations, the main features below :air through the intake manifold valve cavity, along the tangent of the valve flow, impact of approximate straight lines, air valves and flow resistance greatly reduces, so it could provide low noise, long service life.
3. Because of the inlet valve inside the vertical spatial distribution, inlet of the valve flow area increased, the valve flow rate and lower drag coefficient, aspiratory volume increase volume efficiency, reduced energy consumption.
4. Intake and exhaust valves is the reed valve and strip-type valves fixed unlimited free elastic beam opening and closing movements, without friction and clearance volume small so kotech combined air valve has excellent dynamic performance and reliability.
5. Fuel consumption per hour less than 0.143/kw.
6. High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.

Especially suitable for: water and electricity, PET bottle blowing, leak detection, military and other fields

1. Valve materials are made of Sweden stainless steel band.
2. In order to ensure that air compressor highly reliable, using a redundant design principles, setting multiple protection measures: unloading, down drain, exhaust, ensure that the zero-pressure start.
3. Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs continuously between regular drainage, effectively preventing water too much liquid strike accidents.
4. Low exhaust temperature(10.0Mpa exhaust pressure, exhaust air temperature ≤170 degrees, the temperature of exhaust air is above ambient temperature of 15-20 ℃from after- cooler )
5. Fuel consumption per hour less than 0.143/kw.
6. High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.

Technical Parameters
Model Unit Model Air Delivery
(m3/min)
Suction Pressure
(Mpa)
Compressed
Stages
Motor Power
(Kw)
Speed
r.p.m
Size(L*W*H)
(mm)
Weight
(kg)
63KT KT-2.0/30 2.0 3.0 3 22 620 2178*1060*1060 690
2I-KT-2.0/30 4.0 2*22 3718*1108*1208 1380
2-KT-2.0/30 4.0 2*22 2168*1058*2008 1380
3-KT-2.0/30 6.0 3*22 5608*1108*1208 2070
KT-2.0/40 2.0 4.0 22 2178*1060*1060 690
2I-KT-2.0/30 4.0 2*22 3718*1108*1208 1380
2-KT-2.0/30 4.0 2*22 2168*1058*2008 1380
3-KT-2.0/30 6.0 3*22 5608*1108*1208 2070
62KT KT-1.3/30W 1.3 1.3 3 15 660 1700*830*1030 560
2-KT-1.3/30W 2.6 2.6 2*15 660 1750*2000*1230 1128
3-KT-1.3/30T 3.9 3.9 3*15 660 3470*1110*1610 1788
4-KT-1.3/30T 5.2 5.2 4*15 660 4630*1110*1610 2278
KT-1.6/30W 1.6 1.6 18.5 720 1700*830*1030 560
2-KT-1.6/30W 3.2 3.2 2*18.5 720 1750*2000*1230 1160
2-KT-1.6/30T 4.8 4.8 3*18.5 720 3470*1110*1610 1760
4-KT-1.6/30T 6.4 6.4 4*18.5 720 4630*1110*1610 2380
KT-1.3/40W 1.3 1.3 15 660 1700*830*1030 560
2-KT-1.3/40W 2.6 2.6 2*15 660 1750*2000*1230 1128
3-KT-1.3/40T 3.9 3.9 3*15 660 3470*1110*1610 1788
4-KT-1.3/40T 5.2 5.2 4*15 660 4630*1110*1610 2278
KT-1.6/40W 1.6 1.6 18.5 720 1700*830*1030 560
2-KT-1.6/40W 3.2 3.2 2*18.5 720 1750*2000*1230 1128
3-KT-1.6/40T 4.8 4.8 3*18.5 720 3470*1110*1610 1788
4-KT-1.6/40T 6.4 6.4 4*18.5 720 4630*1110*1610 2278
61KT KT-1.0/30 1.0 3.0 2 11 590 1450*750*1050 430
KT-1.2/30H 1.2 11 620 1450*750*1050 430
2-KT-1.0/30 2.0 2*11 590 1450*1700*1050 600
2-KT-1.2/30H 2.4 2*11 620 1450*1700*1050 600
KT-1.2/30 1.2 15 660 1450*750*1050 430
2-KT-1.2/30 2.4 2*15 660 1450*750*1050 600
KT-1.2/30H-YQ 1.2 11 620 1950*950*1300 570
KT-1.2/30-YQ 1.2 15 620 1950*750*1300 570
