Silent Oil Free Scroll Air Compressor

KUW Series

Working pressure: 8bar 116psig
Air delivery: 140~4100L/min
Working power: 1.5~37kw 2~50hp

Description



Compressed air purity is crucial for many industry sectors, such as medical, research and biotechnology.



A scroll air compressor is described as a scroll pump or a scroll vacuum cleaner pump.The design of rotary scroll head creates a continuous compressed air delivery during multiple stages and there is no need oil for lubrication during compression.A scroll air compressed system runs much quieter and more efficiently than the reciprocating oil free air compressor since there are just 2 moving components in the scroll head - a fixed scroll and an orbital scroll. Less moving components make the scroll air compressor more energy saving, more reliable running, and less mechanical failure during running. Compared to a rotary screw air compressor, a scroll air compressor is with less vibritions and much less noise.

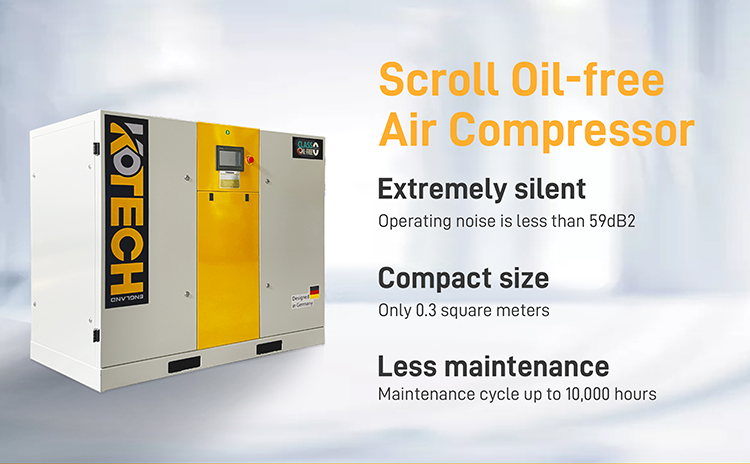

oli free scroll air compressor

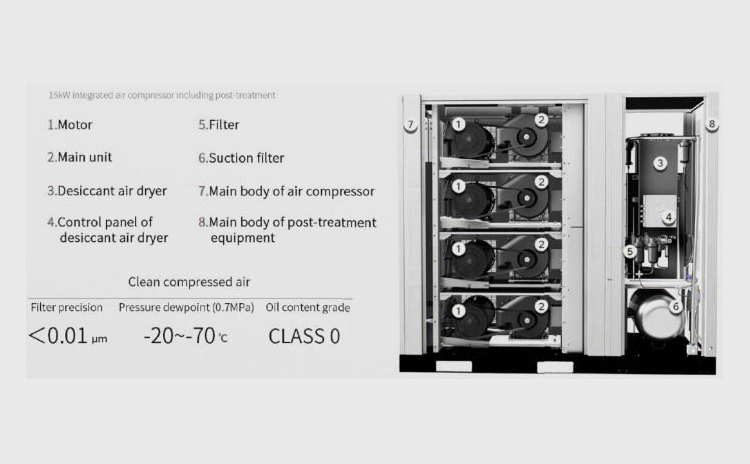

Internal Display


Features


All oil-free, compact, low noise, energy saving, durable (compared to piston compressor and screw compressor)



Oil-free Scroll Air Compressor Advantages

  1. TÜV certification, exhaust ISO-8573-1 Class 0 oil-free;
  2. Modular, high-precision, high-stability oil-free main engine;
  3. Maintenance-free, the maintenance intervals is for up to 10,000 hours;
  4. Running noise is less than 59dB, extremely silent;
  5. Compact size, covering an area of only 0.3 square meters;
  6. Built-in 40L automatic drain stainless steel gas storage tank with pressure vessel certificate;
  7. Pipes and joints are made of stainless steel or aluminum alloy;
  8. Optional integrated post-processing equipment, the gas supply reaches the level of medical clean gas;
  9. 220V single phase power supply is optional (only power below 1.5kW).

Oil-free Scroll Air Compressor Application


Laboratory, biopharmaceutical, hospital gas supply, food and beverage, precision electronics, textile printing, spray coating, new energy vehicles, rail transit, military industry,etc.



Oil-free Scroll Air Compressor Application

Technical Parameters
Model Motor Power Voltage Air Delivery Exhaust Pressure Control Method Speed Output pipe diameter Air Tank Dimension Weight Noise
kW/HP L/min MPA r/min L (L×W×H)mm kg dB(A)
KUW-1.5-8 1.5/2 220V(2HP/3HP)
380V(2HP/3HP/5HP)
50HZ/60HZ
140 0.8 Automatic
Control
2800 RC1/2 / 540*540*770 110 51±3
KUW-1.5CT-8 40 540*540*1190 160
KUW-1.5ST-8 40 540*540*1190 180
KUW-2.2-8 2.2/3 240 0.8 3000 RC1/2 / 540*540*770 115 53±3
KUW-2.2CT-8 40 540*540*1190 165
KUW-2.2ST-8 40 540*540*1190 180
KUW-3.7-8 3.7/5 410 0.8 3200 RC1/2 / 540*540*770 120 55±3
KUW-3.7CT-8 40 540*540*1190 170
KUW-3.7ST-8 40 540*540*1190 190
KUW7.5-8A 7.5/10 820 0.8 3200 RC3/4 / 1235*680*1010 227 60±3
KUW11-8A 11/15 1230 RC1 / 1235*740*1270 459 61±3
KUW15-8A 15/20 1640 RC1 / 1235*740*1630 585 62±3
KUW18.5-8A 18.5/25 2050 0.8 3200 RC1/2 / 1235*740*1990 734 62±3
KUW22-8A 22/30 2460 / 1580*1235*1630 910 60±3
KUW30-8A 30/40 3280 / 1580*1235*1630 910 61±3
KUW37-8A 37/50 4100 / 1580*1235*1990 910 62±3
